Automatic Profile Stacker (Gantry Type)

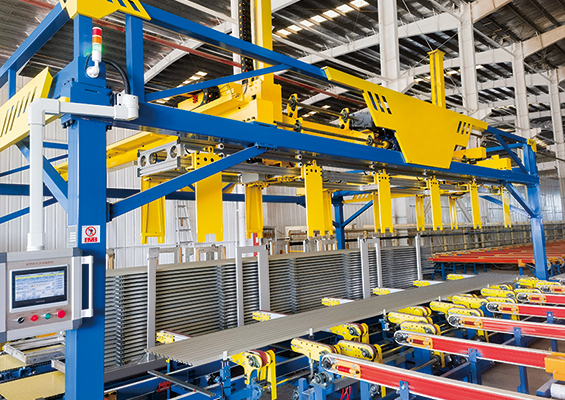

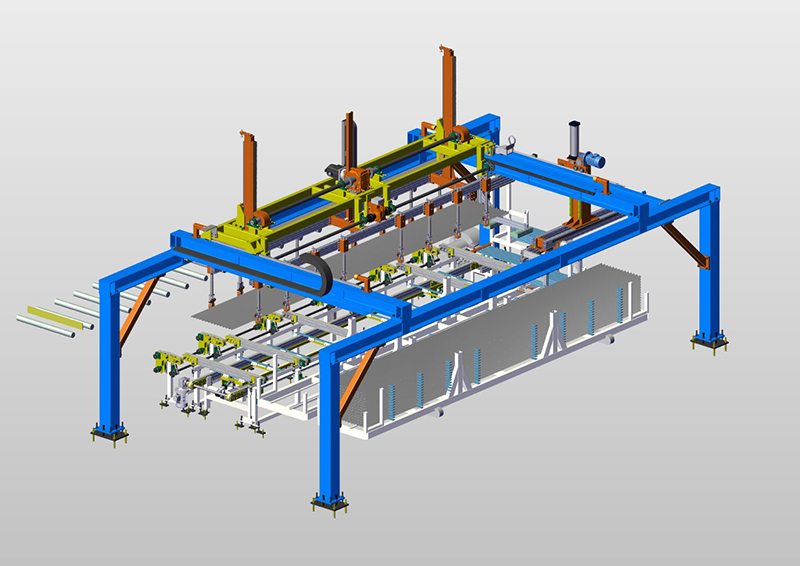

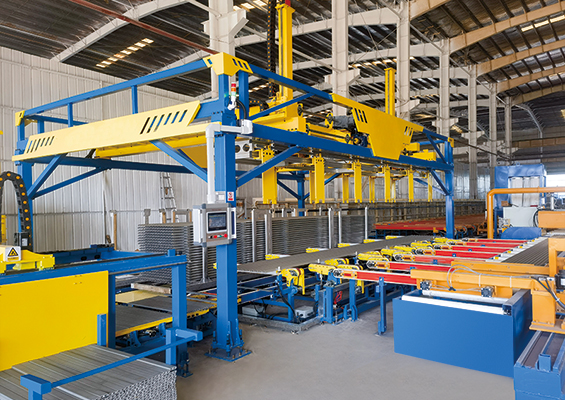

The gantry automatic aluminum profile stacker utilizes a gantry-overhead manipulator engineered for the automated stacking and basket-loading of finished aluminum profiles between 4.2 and 7.5 meters in length. For processing extra-long aluminum profiles, the profile stacking layout can be fully customized around your specific profile basket and logistics sizes.

The automatic profile stacking system is equipped with automatic profile sorting, counting, feeding, and synchronized belt conveyor lines to achieve fully automated handling of aluminum extrusion profiles. It also features an integrated dual-station spacer counting and placement system. The finished profile saw performs cutting, profile counting, and sorting simultaneously, allowing continuous inline production without interrupting the extrusion process. Once the preset quantity is reached, the system automatically executes the profile stacking and basket loading operation.

Designed for aluminum extrusion plants, the profile stacking system helps improve production efficiency, reduce manual handling, and enable stable, scratch-free automatic stacking for aluminum profiles.

• As profiles exit the extrusion press, our intelligent quenching platform dynamically deploys distinct, optimized cooling recipes based on the specific cross-section geometry, alloy metallurgy and target mechanical properties. This specialized handling achieves balanced, stress-free cooling across the entire aluminum profile length.
• The cooling nozzles utilize advanced, progressive water quenching logic to guarantee uniform heat extraction, drastically reducing profile thermal distortion and maximizing finished yield rates.
